XD16N
XD16N is a high-nitrogen, high-temperature martensitic stainless steel with excellent corrosion resistance, impact and fatigue resistance, dimensional stability, and high hardness properties. Sullivan Steel is the exclusive North American distributor of XD16N.
Melt-type(s): Air-melt
STANDARDS
| Type | Specification |
|---|---|
| AMS | AMS 5926 |
| UNS | S42716 |
| EN/DIN | X50CrSiMnVN16-1 |
SIZES AVAILABLE
| Form | Size range |
|---|---|
| Bar | 0.591" - 5.512" |
| Wire | 0.217" - 0.512" |
CHEMICAL COMPOSITION
| Element | Range (%) |
|---|---|
| C | 0.45 - 0.60 |
| Cr | 15.00 - 16.50 |
| Mn | 0.80 max |
| Mo | 0.20 - 0.40 |
| N | 0.05 - 0.20 |
| Ni | 0.40 max |
| Si | 1.30 - 1.70 |
| V | 0.20 - 0.40 |
CHARACTERISTICS
| High temperature | Stainless | Through-hardened | Nitriding | Carburizing | Induction |
|---|---|---|---|---|---|
CHARACTERISTICS
| Characteristic | Value |
|---|---|
| High temperature | |
| Stainless | |
| Through-hardened | |
| Nitriding | |
| Carburizing | |
| Induction |
ADDITIONAL INFO
In certain applications or environments, XD16N can provide solutions to common material performance issues:
-
If 440C is corroding or underperforming, XD16N offers improved characteristics in nearly all respects. Manufactured by Aubert & Duval, XD16N is a true stainless with 58+ HRC hardness and provides superior fatigue and wear resistance for a price comparable to remelted 440C.
-
Other CREN grades such as XD15NW®, Cronidur® 30, and N360, may outperform 440C in corrosive applications, but at a higher price point. XD16N provides the optimal balance of performance and affordability while maintaining higher hot-hardness levels than other CREN grades.
-
High-temperature applications often call for BG-42®, a higher-cost and supply-constrained stainless steel. If BG-42® is out of budget or out of stock, XD16N is an ideal alternative with higher hot-hardness levels and stainless properties at a significantly cheaper price.
-
While similarly corrosion-resistant, XD16N is a significant upgrade in wear resistance to PH or 300 series grades.

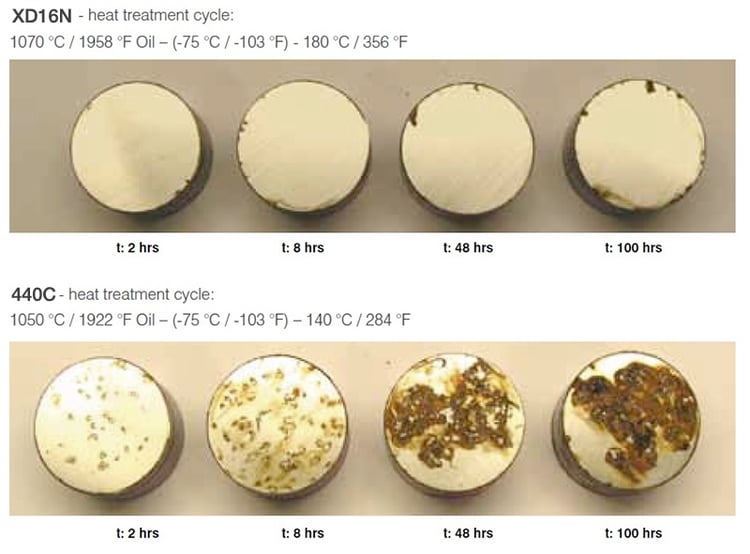

XD16N’s corrosion resistance has been tested against 440C (X105CrMo17) using a salt spray test conducted according to NF X 41-002. The photos below show material surfaces after various salt spray exposure times.
Heat Treatment
Heat treatment instructions and recommendations for XD16N are provided by one of our mills, Aubert & Duval. Please contact Sullivan Steel for additional guidance or information.
Machinability

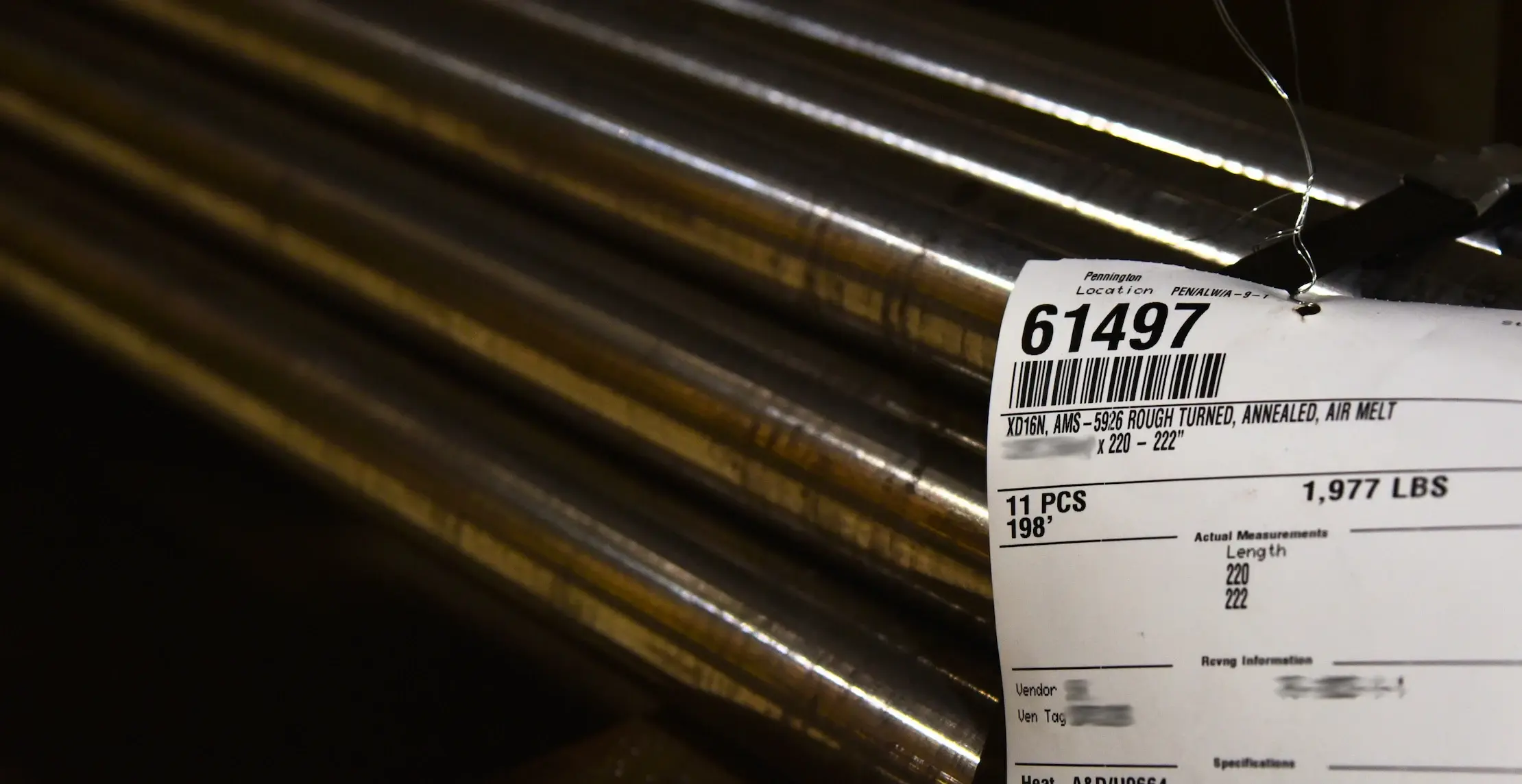

Sullivan Steel typically stocks XD16N in the annealed condition, optimal for machinability and heat treatment uniformity. Exceptions may apply.
Common Applications
Gears, valves, injection systems, blades, cutting tools.
RESOURCES
Aubert & Duval Brochure: Brochure-XD16N.pdf
DISCLAIMER
The product information provided on this page is provided for general reference only and is not complete. Customers and prospective customers should rely on the applicable material certifications for product information, including any exceptions to specifications, if applicable. Material certifications are available upon request. All product sales are subject to Sullivan Steel’s standard terms and conditions of sale.
