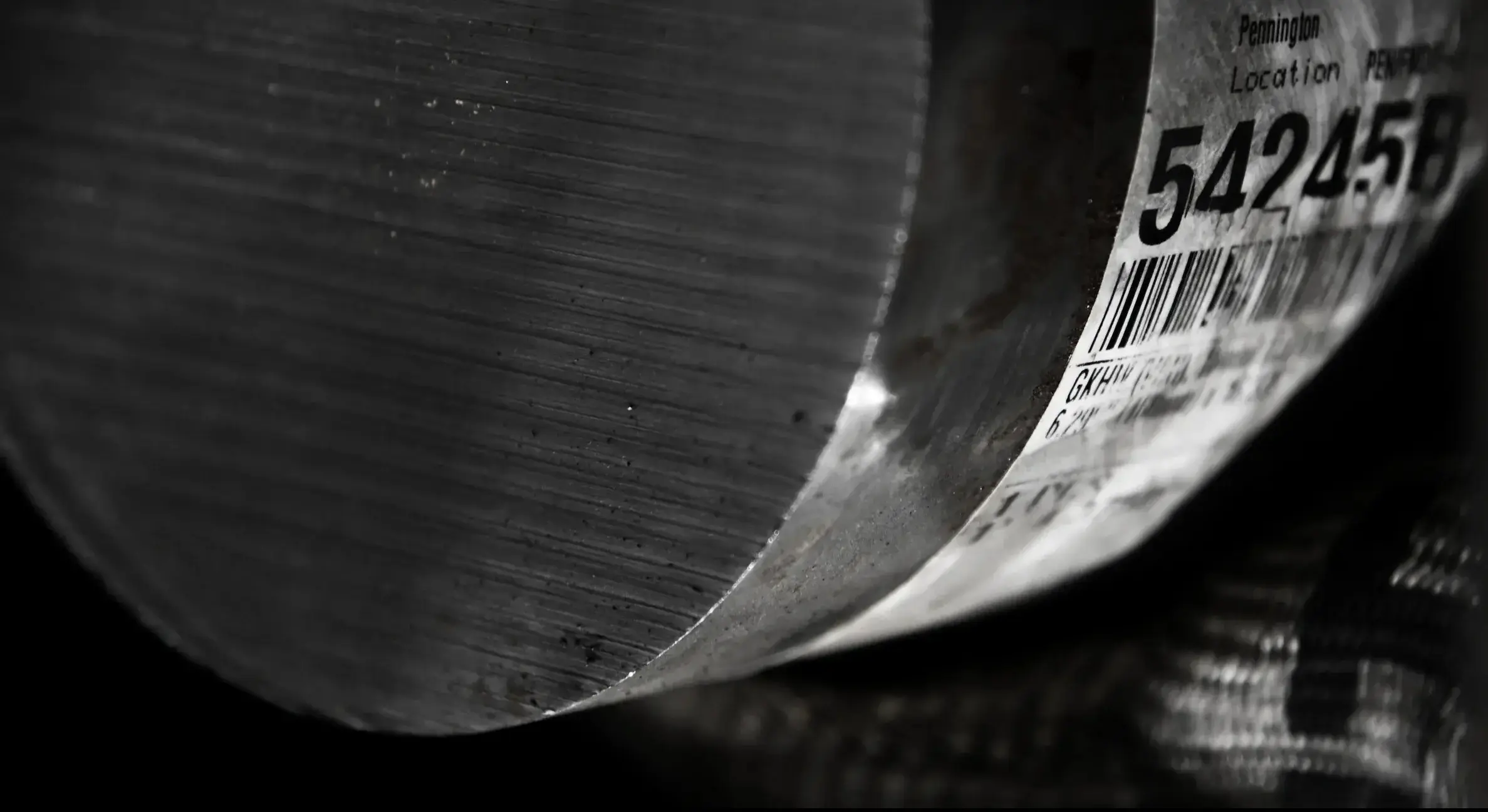

GKHW
GKH®W is a high-performance, nitriding martensitic stainless steel with high resistance to contact pressure and fatigue, as well as high thermal fatigue and conductivity.
Melt-type(s): VAR
Other name(s): N/A
Comparable grade(s): Nitriding 135M™
STANDARDS
| Type | Specifications |
|---|---|
| AMS | AMS 6481 (VIM-VAR only) |
| UNS | K24340 |
| EN/DIN | 33CrMoV12-9, E32CDV13 |
| EN | 1.7765, 1.8522 |
SIZES AVAILABLE
| Form | Size range |
|---|---|
| Bar | 5.512" - 6.299" |
CHEMICAL COMPOSITION
| Element | Range (%) |
|---|---|
| C | 0.29 - 0.36 |
| Cr | 2.80 - 3.30 |
| Mn | 0.49 - 0.70 |
| Mo | 0.70 - 1.20 |
| Ni | 0.30 max |
| P | 0.02 max |
| S | 0.01 max |
| Si | 0.10 - 0.40 |
| V | 0.15 - 0.35 |
CHARACTERISTICS
| High temperature | Stainless | Through-hardened | Nitriding | Carburizing | Induction |
|---|---|---|---|---|---|
CHARACTERISTICS
| Characteristic | Value |
|---|---|
| High temperature | |
| Stainless | |
| Through-hardened | |
| Nitriding | |
| Carburizing | |
| Induction |
ADDITIONAL INFO
GKH®W offers a premier combination of core properties to withstand structural loads, damage tolerances, and surface functions in the case-hardened layer, which provides an exceptional solution for contact pressures and fatigue performance. GKH®W can also be used without nitriding.
The table below compares GKH® W’s mechanical properties against some closely related grades.
| Grade | Technology | Operating Temp. (°F) |
Case Properties | Core Properties | Lf Case-Hardened Material (MPa/KSI) |
|||
| Peak HRC | Case Depth (mm/in) | UTS (MPa/KSI) | YS0, 2 (MPa/KSI) | K1c (MPa.Vm) | ||||
| 9310 VAR | Carburizing | 300 | 60 | 1.40/0.06 | 1150/167 | 900/131 | 120 | 1050/152 |
| AMS 6308 | 390 | 60 | 1.40/0.06 | 1172/170 | 965/140 | 126 | - | |
| AMS 6509 | 840 | 62.5 | 1.40/0.06 | 1578/229 | 1370/199 | 93 | - | |
| AMS 6475 | Nitriding | 840 | 65.5 | 0.45/0.02 | 1240/180 | 1150/167 | - | - |
| GKH®W | 840 | 64.7 | 0.70/0.03 | 1250/181 | 1060/154 | 180 | 1140/165 | |
| Grade | Heat Treatment | UTS | 0.2% YS | E | KV | Surface Hardness |
| MPa/KSI | MPa/KSI | (%) | J/ft. lb | HRC | ||
| M50 VIM-VAR | 1100°C gas, -75°C, 3 x 550°C | Through-hardened to HRC 60-63 | ||||
| 9310 VAR | 825°C oil, -75°C, 150°C | 1150/167 | 900/131 | 14 | 140/103 | 60 |
| M50NiL | 1100°C oil, -75°C, 3 x 540°C | 1400/203 | 1200/174 | 15 | 12/9 | 60 |
| GKH®W | 920°C oil, 600°C | 1250/181 | 1060/154 | 15 | 130/96 | 65.5 |
| GKP®YW | 940°C, 640°C | 1250/181 | 1075/156 | 16 | 80/59 | 67 |
Heat Treatment
Heat treatment instructions and recommendations for GKH®W are provided by one of our mills, Aubert & Duval. Please contact Sullivan Steel for additional guidance or information.
Machinability
Sullivan Steel typically stocks GKH®W in the normalized and tempered condition, optimal for machinability and heat treatment uniformity. Exceptions may apply.
Common Applications
Gears, spindles, machine-tool fittings, crankshafts, camshafts, precision parts, aircraft parts, thrust rings, and bearing races (up to 400°C), components requiring special nitriding.
